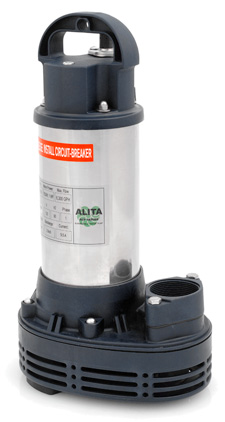

AUP Series Submersible Water Pumps


Screened Model


Standard Model
  • Stainless Steel Motor Housing
  • Fiberglass Reinforced Engineering Composite Body
  • Detachable Base Strainer
  • Non-Clog Vortex Impeller For Free Passage of Large Solids & Fibers
  • Continuous Duty Submersible Pump
  • FEATURES

    VORTEX IMPELLER FOR TOUGH-TORQUE FLOW

    Real Non-Clog performing volute impeller made of Fiberglass Reinforced Plastic (FRP) provides continuous operation with minimum abrasive wear and eliminates clogging and binding. Pumping is accomplished by induced high speed vortex which increase fluid pressure and minimize particle contact or entanglement of fibrous matter in wastewater and sludge.

    DETACHABLE STRAINER

    Dual use effluent and sewage handling design. Protect against damage from passing large rocks or metal objects. Safe guard for frog and fish.

    LARGE SOLID HANDLING PASSAGE

    For heavily polluted wastewater containing slender matter, long fibers and small or large solid particles.
    Suspended solids handling capacity: 35 mm (1.38 inch) in diameter

    ABRASION AND CORROSION RESISTANT

    Pump casing made of 304 stainless steel and fiberglass-reinforced engineering composite. The materials are strong and lightweight with high resistance to rust, corrosion, abrasion and impact.

    RUGGED MOTOR

    Motor housing: Stainless steel - corrosion resistant and good heat dissipation.
    Motor: Oil free (air filled electric induction motor).
    Designed for durable continuous operation.

    HIGH QUALITY MECHANICAL SEALS

    Double Silicon Carbide mechanical seals (impeller side) in lubricant chamber. SiC provide greater hardness (approaching diamond), withstanding of pumping pressure, corrosion and abrasion resistant, self-lubrication and temperature fluctuation tolerance.

    BUILT-IN OVERLOAD & THERMAL PROTECTION

    Self resetting automatic protection for motor against overload or overheat conditions.



    SPECIFICATION

    Pump Model (curve) AUP-150 AUP-250 AUP-400 AUP-750
    Discharge (FNPT) 50 mm, 2 inch
    Outlet Adapter (MNPT x Insert) 2 inch barbed fitting
    Inlet Size 35 mm, 1.4 inch (with strainer removed)
    Motor Output Rating 0.15 kW
    1/4 HP
    0.25 kW
    1/3 HP
    0.4 kW
    1/2 HP
    0.75 kW
    1 HP
    Voltage, Frequency, Phase 110 ~ 120V AC, 60Hz, Single Phase
    Maximum Head 22 ft 29 ft 39 ft 49 ft
    Maximum Capacity (110V, 60Hz) 3000 GPH 4200 GPH 5500 GPH 6300 GPH
    Physical Dimension (L x W x H) 9.5" x 7" x 15"
    9.5" x 7" x 15.75" 9.5" x 7" x 16.5" 9.5" x 7" x 17.5"
    Net Weight 16 lb 19 lb 22 lb 25 lb
    Power Cable 6 m, 20 ft
